Products

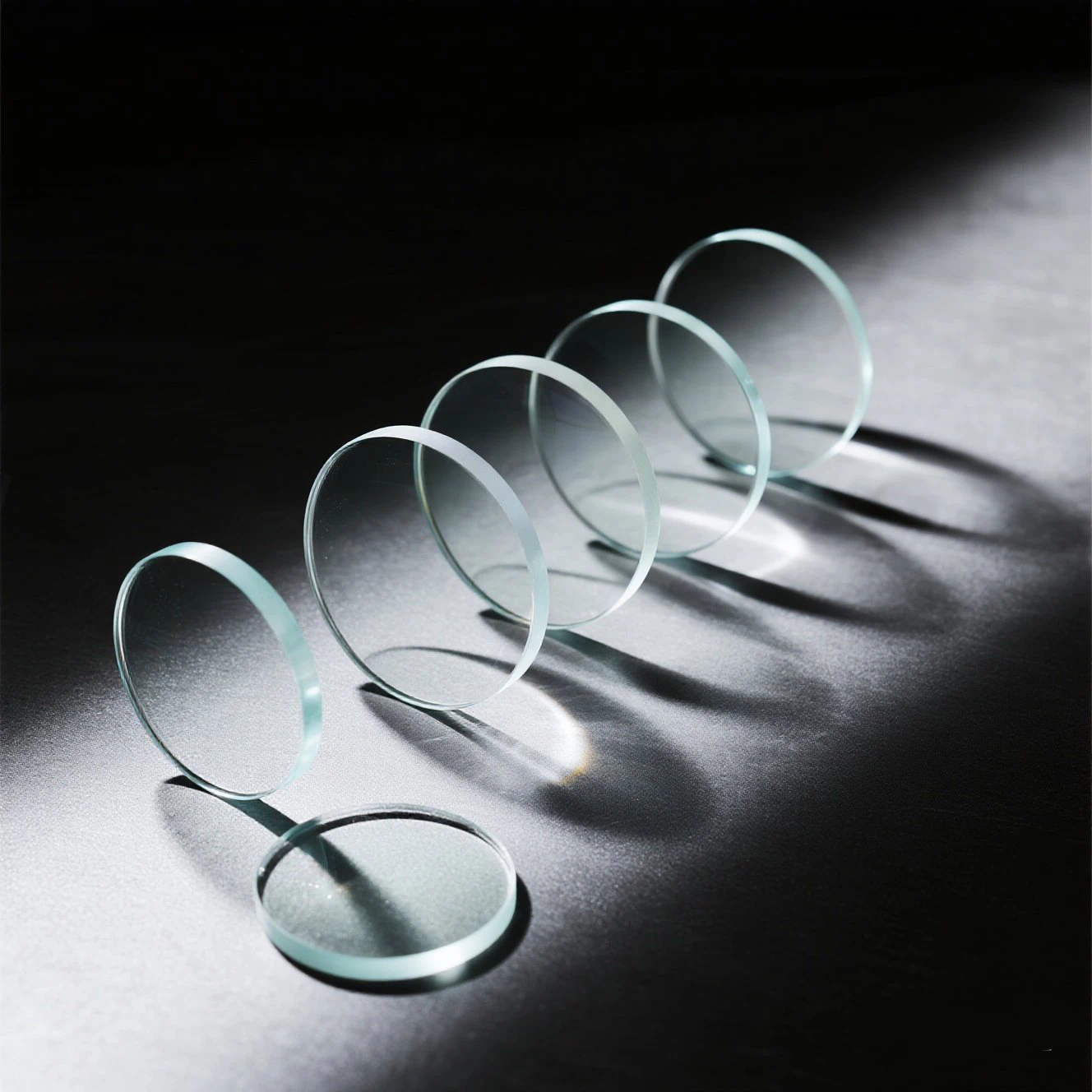

Flat Optics
| Item | Specification |
|---|---|
| Material | Glass, Ceramics, Infrared Materials |
| Diameter Range | 50mm ~ 600mm |
| Surface Figure Accuracy | PV ≤ 30nm, RMS ≤ 5nm |
| Parallelism | ≤2″ |
| Surface Roughness (Rq) | ≤0.3nm |
| Surface Quality | 20-10 |
| Coating Coverage | VIS/NIR/IR |
* Note: Can be customized to client specifications.

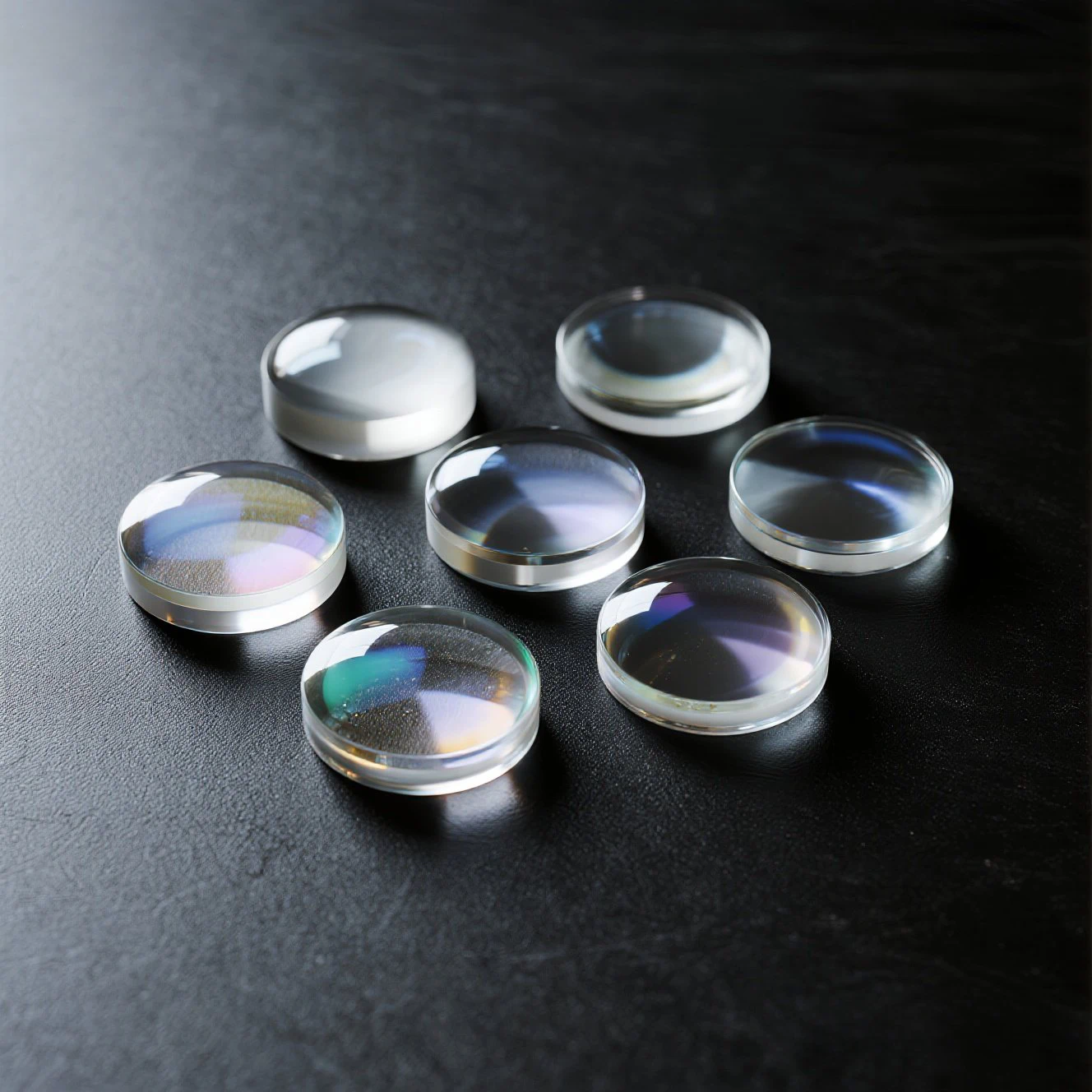

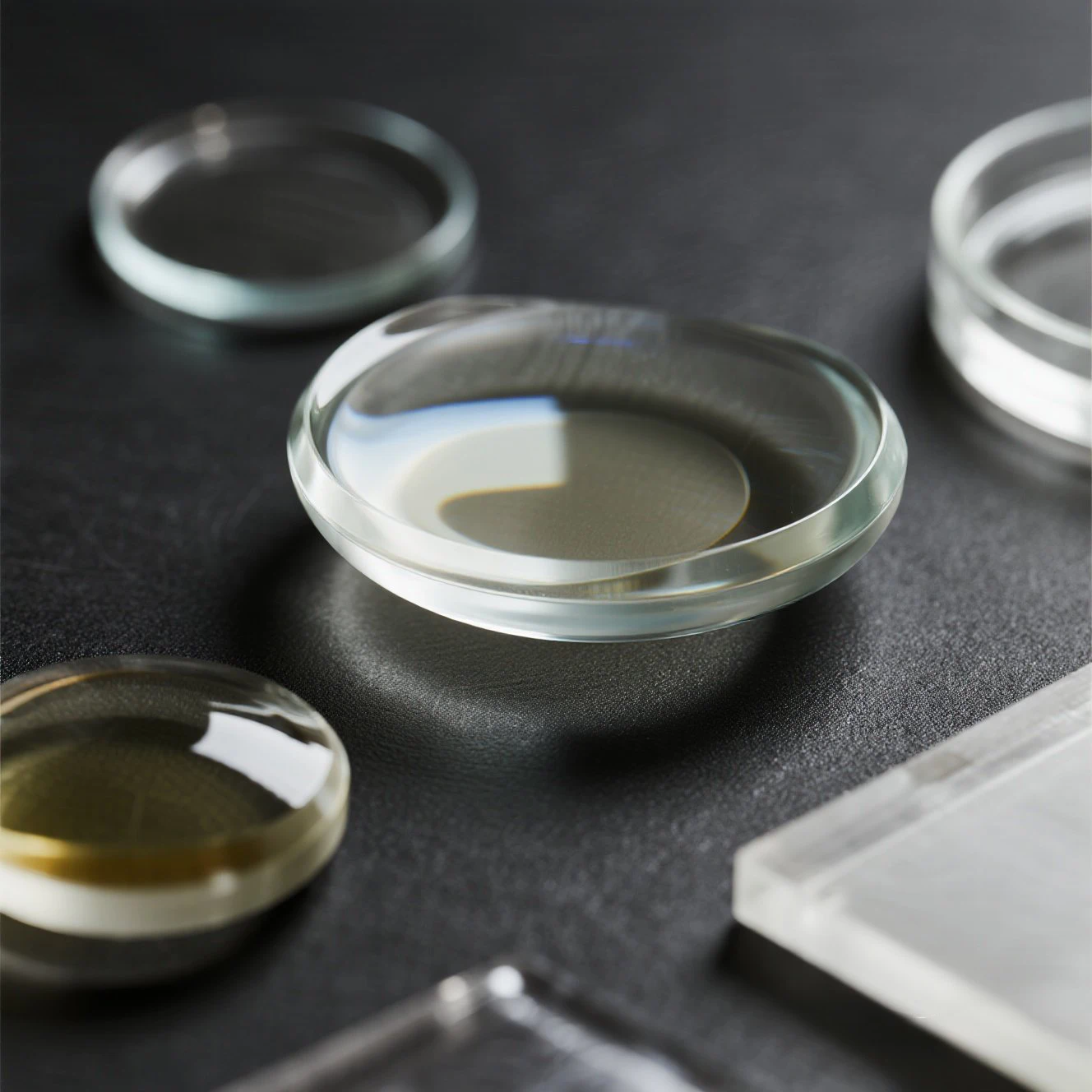

Spherical Optics
| Item | Specification |
|---|---|
| Material | Glass, Ceramics, Infrared Materials |
| Diameter Range | 100mm~600mm |
| Surface Figure Accuracy | PV≤30nm，RMS≤5nm |
| Axis Alignment | ≤0.01mm |
| Surface Roughness (Rq) | ≤0.3nm |
| Surface Quality | 20-10 |
| Radius of Curvature Tolerances | 0.05% |
| Coating Range | VIS/NIR/IR |
* Note: Can be customized to client specifications.
Aspheric (Freeform) Optics
| Item | Specification |
|---|---|
| Material | Glass, Ceramics, Infrared Materials |
| Diameter Range | 100mm~600mm |
| Surface Figure | PV≤60nm，RMS≤12nm |
| Axis Consistency | ≤0.01mm |
| Surface Roughness (Ra) | ≤0.5nm |
| Surface Quality | 20-10 |
| Focal length tolerance | ±0.1% |
| Coating Range | VIS/NIR/IR |
* Note: Can be customized to client specifications.
